Find DefLine ​
Layer(s) affected:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Deflines, DeflinesStructure, HydraPipes. ERROR
Alias:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â FDEF
Associated Commands:Â Â Â Â Â Â Â Â Â [Structure Elevations] [Define Drops & Sprigs] [Pipe Elevations]

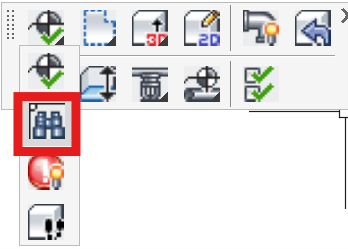

HydraCAD Ribbon: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Elevate Panel
Identifies the DefLine that controls a selected pipe’s elevation. You must be in the 3D mode. Start the command and select a pipe.
A dashed line will appear connecting the pipe to the DefLine. Sometimes it is difficult to determine which DefLine is responsible for elevating a pipe. This utility will identify the DefLine for you.
HydraCARDs (Troubleshooting) ​
For HydraCARDs regarding Find Defline: [Click Here]
