Clean up Reference Points

Layer(s) affected:                   HYD2

Alias:                                       CRP

Associated Commands:         [Reference Points]

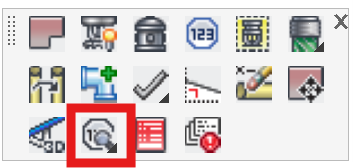

HydraCAD Ribbon:                 Cleanup Panel

Used to reposition Reference Points to reduce clutter. Start the command and select the Reference Points either individually, with a window or right click to select all of them. After selection the command will zoom to the first reference point. The reference point will already be selected; you can pick a new location or right click to leave the reference point where it is. The command will then move to the next selected Reference Point for relocation.

The command continues until all selected Points have been repositioned. The Reference Points will retain their association with the original insertion point so that they will be picked up properly by the AutoCalcs program.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Clean Up Ref Points: [Click Here]
