Scale Pipe Sizes Down

Layer(s) affected:                   SPRKDATA, SPRKDATB

Alias:                                       None

Associated Commands:         [Size Pipe]

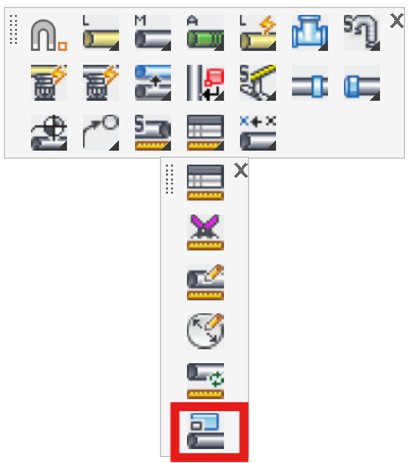

Used to scale pipe size and pipe length tags to 1/20 of their normal size.

When HydraCAD couplings are installed at connections such as tees and 90° elbows, the takeouts are inserted as small pipe sizes and length tags. If you wish to reduce the scale of other pipe sizes that may be congested, use this command to make them barely visible. They can still be read by the stocklisting and calculation programs after this operation.
