Rapid Main

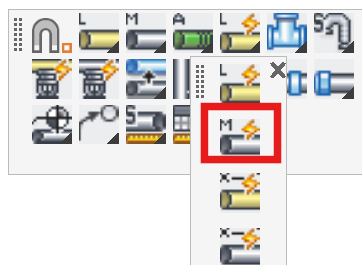

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   SPRKDAT1

Alias:                                       RM

Associated Commands:         [Rapid Line] [Rapid Main w/ Size]

HydraCAD Ribbon:                 Draw Panel

Used to quickly draw main pipes. This is an intelligent command that automatically snaps to pipes. See the Rapid Line command for a detailed explanation.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding 45 Ell: [Click Here]
