Flex Section

Layer(s) affected:                   HVAC

Alias:                                       None

Associated Commands:         [Duct Width] [Rigid Turn] [Rigid Section] [Flex Turn]

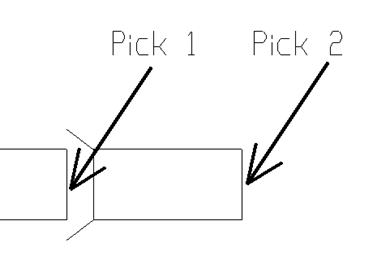

Used for installing flexible sections. Press Enter to use the end of the last duct inserted or pick the centerline of the end of the duct where the flex section will be applied.

Pick a point where the section will end or drag and enter a distance as before.
