Ell/Tee

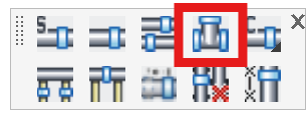

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   SPRNK2, SPRKDAT1, SPRKDAT2, SPRKDATA

Alias:                                       ET

Associated Commands:         [Coupling Setup] [Takeouts] [Remove Blocks]

HydraCAD Ribbon:                 Insert Panel

Used for inserting couplings for elbows, tees, crosses or single pipes with take outs. Inserted fitting specifications will be determined by the fitting type and size as selected by the Coupling Setup command. One coupling will be inserted for each of the pipes found at the end of the pipe that is picked. This can be one, two, three or four pipes, not just an ell or tee.

The example here shows four 2 ½” pipes joined at a cross.

The Coupling Setup command was used to set the fitting type as Standard Grooved 90 Elbow or Tee, and the diameter set to 2 ½”. After selecting the Ell/Tee command, the pipes were picked at the intersection.

The couplings for the cross were inserted and the pipe lengths changed to accommodate the fitting.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Ell / Tee: [Click Here]
