Erase Line

Layer(s) affected:                   SPRKDAT1, SPRKDAT2, SPRNK2, SPRKDATA

Alias:                                       ELI

Associated Commands:         [Line]

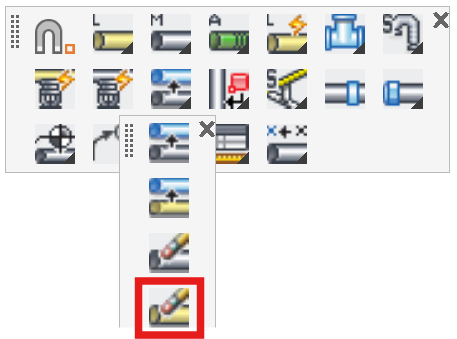

HydraCAD Ribbon:                 Draw Panel

Used to delete a line pipe. Riser nipples and pipe breaks are removed

Start the command and you will get the prompt: Select Pipes by using [Straight pipe run, One Direction, Coupling segment] <Straight pipe run>\ :

Straight Pipe Run will select all of the pipe up until the end of the pipe or the first change in direction. One Direction will select all of the pipe up until the end of the pipe or the first change in direction to the right of the pipe picked. Coupling segment will select all of the pipe up until the first coupling encountered.

Choose your selection method by picking in the Command line or entering the first few letters of the option. Coupling segment was selected in the example.

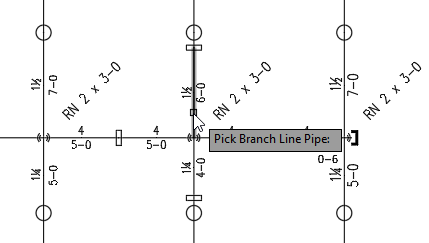

You will be prompted to Pick Branch Line Pipe. Pick the line.

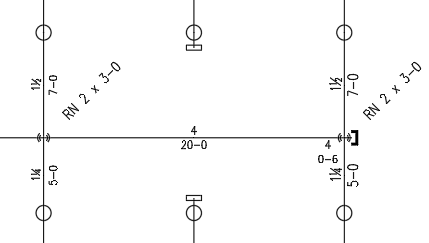

The lines and riser nipple are deleted. The main is joined where the branch pipes once were. Existing lengths are changed to accommodate the adjustment.
