Structure Elevations

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   DefinesStructure

Alias:                                       TOP

Associated Commands:         [Floor Elevation] [Show System Model] [Check Elevation] [Define Pipe Elevations]

Used to insert Building DefLines for specifying top of steel or floor elevations. The Structure Height Input dialog box will open.

A screenshot of a cell phone Description automatically generated

If your roof or steel is horizontal, select Same Elevation @ Start and End. Enter an elevation in the Elevation at Start Point field with the keyboard or pick the abacus to the right to select a height.

If you have an existing DefLine, you can Pick it to inherit the elevation value.

If your roof or steel is sloping, un-check Same Elevation @ Start and End. Enter an elevation in both the Start Point and End Point fields.

Select whether your Framing Direction is Primary or Secondary Steel. The Primary Steel will be the direction of the main building beams. The Secondary Steel will be perpendicular to or at some other angle to the Primary Steel. An example of Secondary Steel would be bar joists.

When you are set up, press the Pick Defining Points button.

A close up of a logo Description automatically generated

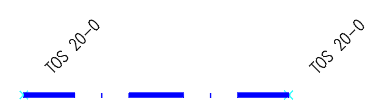

The DefLine is defined by two picks. TOS elevation tags will appear at the beginning and end of the DefLine.

To set the elevation of a floor, press Specify Floor Elevation. The following dialog box will appear.

A screenshot of a cell phone Description automatically generated

Enter an elevation in the Elevation field with the keyboard or pick the abacus to the right to select a height.

Select how you want to define the floor with the Shape of Box radio buttons. The Rectangular option is for simple rectangular shaped rooms. The Non-Rectangular option is for odd shaped rooms.

Pick Defining Points to describe the room.

HC18

HC17

Building DefLines may be used to specify pipe elevations. For example, you can specify your pipe elevations to be a set distance below the top of steel. You can also specify sprinklers to be a set distance above a floor DefLine. If you elect to use them, the top of steel DefLines must be on both sides of your pipes and the DefLine lengths must extend beyond the limits of the pipes.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Structure Elevations: [Click Here]
