Existing Main

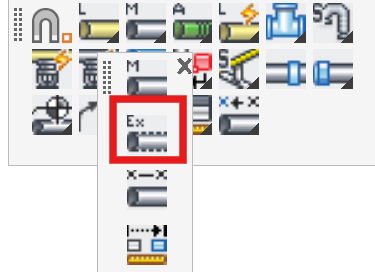

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   SPRKDAT1

Alias:                                       None

Associated Commands:         [Auto Main] [Tee] [90 Ell] [45 Ell] [Double Ell] [Size Pipe Setup]

[Pretty Pipes]

Used to draw existing main piping. Places a line using the ‘hidden’ line style in the SPRKDAT1 layer. Draw the main from a picked point to a picked point. Pretty Pipes applied to these pipes will inherit the same line type as the Existing Main itself.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Existing Main: [Click Here]
