Join Pipes

Layer(s): SPRKDAT(1,2,3), SPRKDAT(A,B)

Shortcut: JP

Ribbon: Tools Panel Slide-out

Used to join two pipes.

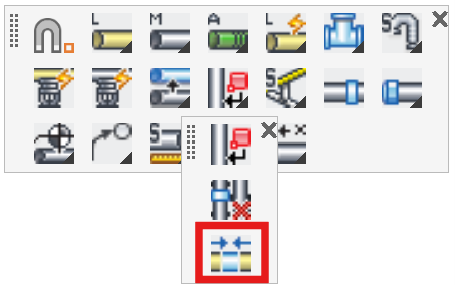

Select the Join Pipes command and pick the two pipes to be joined.

The break will be removed and the pipe dimensions updated.

Dimensions do not need to be present to use this command.
