Draw Leader

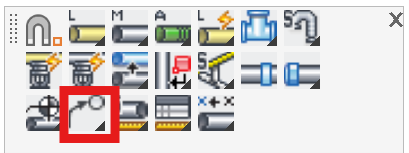

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   DMNS

Alias:                                       LEEDER

Associated Commands:         [Spline]

HydraCAD Ribbon:                 Cleanup Panel

Used to quickly draw a leader with three picked points. The first point picked will be the location of the arrow.

The last point picked should be near the text. This command is similar to the AutoCAD LEADER command except it limits the number of picks required and does not ask for text input.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Draw Leader: [Click Here]
