Joists and I-Beams

Layer(s) affected:                   STEEL

Alias:                                       None

Associated Commands:         None

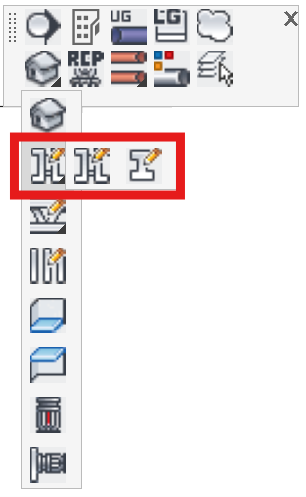

Used to insert Joists and I-Beams in the section view. When you select the Joist or I-Beam command, you will be prompted for width, height, and to pick an insertion point. Next you will be prompted to pick a direction and the steel will be inserted.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Joists: [Click Here]

For HydraCARDs regarding I-Beams: [Click Here]
