Draw Floor/ Draw Ceiling

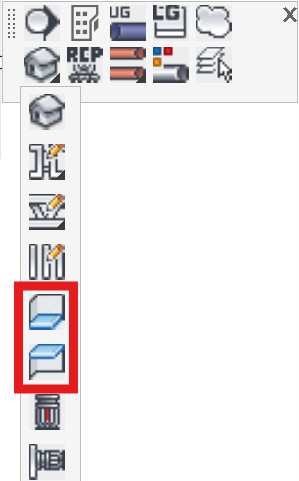

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   WALLS, CEILING

Alias:                                       None

Associated Commands:         None

Used to draw Floors and Ceilings in the elevation view.

After selecting the command, pick the start and end points. You can also

drag and enter the distance from the first picked point.

Ceilings are drawn as lines. Floors are drawn as plines where the thickness may be specified.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Draw Floor/ Draw Ceiling: [Click Here] or [Click Here]
