Draw Building

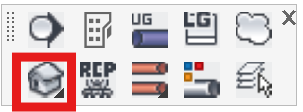

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   WALLS

Alias:                                       None

Associated Commands:         None

Used to insert an elevation view including the floor, walls, and ceiling. When you start the command, you will be prompted to enter the Floor Thickness, Floor Length, Wall Width, Left Wall Height, Right Wall Height, Roof Thickness, and then to pick the lower left starting point.

HydraCAD will insert the section view in the scale that the opening drawing was set at. From here you can add details such as steel, pipes, and sprinklers.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Draw Building: [Click Here]
