45 Ell

Layer(s) affected:                   SPRKDAT1, SPRKDAT2, SPRKDATA

Alias:                                       ELL2

Associated Commands:         [Main] [Line] [90 Ell] [Double Ell]

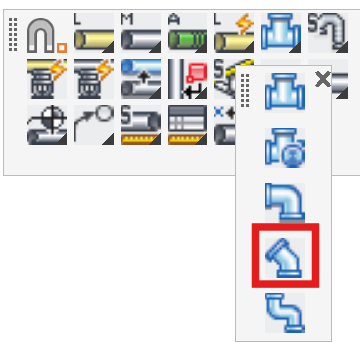

HydraCAD Ribbon:                 Draw Panel

Used to connect mains, lines, and sprinklers at 45°. If a 45 cannot be created at the location chosen, you will be notified by an alert box.

Pick the 1st Head as the first point. Pick the 2nd Head as the second point.

Pick a point above the end of the pipe for direction. The pipe at 45° is inserted, connecting the two picked points.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding 45 Ell: [Click Here]
