Existing Line

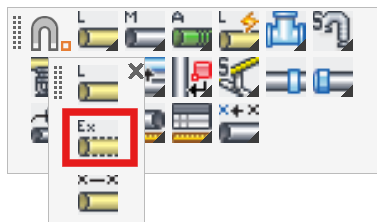

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   SPRKDAT2

Alias:                                       None

Associated Commands:         [Tee] [Line w/ Size] [Auto Line] [90 Ell] [45 Ell] [Double Ell]

[Pretty Pipes]

Used to draw existing branch line piping. Places a line using the ‘hidden’ line style in the SPRKDAT2 layer. Draw the line from a picked point to a picked point. Pretty Pipes applied to these pipes will inherit the same line type as the Existing Line itself.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Existing Line: [Click Here]
