Break In Block

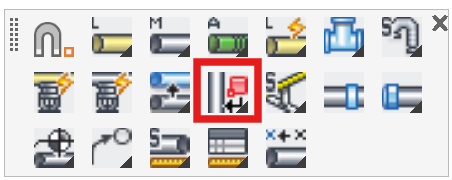

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   SPRKDAT1, SPRKDAT2, SPRKDAT3, SPRNKS, SPRNK2

Alias:                                       BB

Associated Commands:         None

Used to insert HydraCAD blocks such as riser nipples, sprinklers or couplings onto an existing pipe.

A screenshot of a cell phone Description automatically generated

Start the Break In Block command and the first pick will be the block. The second pick will be the pipe where the riser nipple will be inserted.

The nipple moves in a perpendicular direction onto the pipe. The pipe is broken at the point of insertion and the pipe lengths changed to accommodate the break.

A close up of a clock Description automatically generated

Pipe dimensions need not be present. The command will work with any block such as a head. For the best results, zoom in closely.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Break In Block: [Click Here]
