Move Line

Layer(s) affected:                   SPRKDAT1, SPRKDAT2, SPRNK2, SPRKDATA

Alias:                                       MLI

Associated Commands:         [Line]

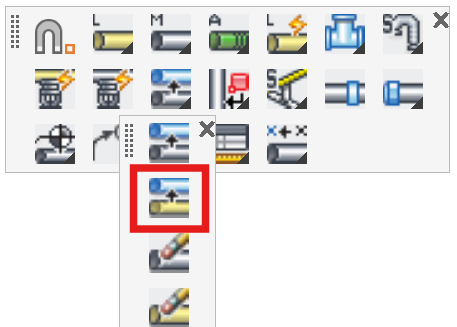

HydraCAD Ribbon:                 Draw Panel

Used to move a line pipe. Riser nipples and pipe breaks are moved as well.

Start the command and you will get the prompt: Select Pipes by using [Straight pipe run, One Direction, Coupling segment] <Straight pipe run>\ :

Straight Pipe Run will select all of the pipe up until the end of the pipe or the first change in direction. The left side of the left pipe was selected.

One Direction will select all of the pipe up until the end of the pipe or the first change in direction to the right of the pipe picked. The left side of the second pipe was selected.

Coupling segment will select all of the pipe up until the first coupling encountered. The left side of the left pipe was selected.

Select the method and pick the new location. Or, press enter for [Direction then Distance]. Pick the direction and then enter the distance to move.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Move Line: [Click Here]
