Draw Columns

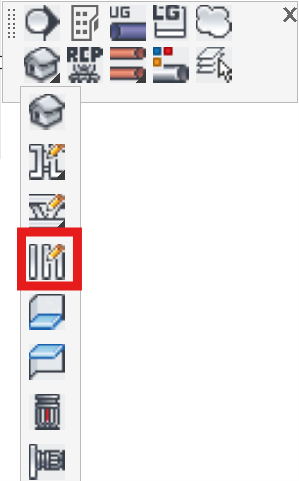

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   STEEL

Alias:                                       None

Associated Commands:         None

Used to draw Columns in the elevation view. Enter the width of the column and then pick the start and end points.

You can drag and enter the distance from the first point. The column is inserted as a thick pline. The thickness of the pline scales to the width entered.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Draw Columns: [Click Here]
