Define Drops/Sprigs or Ceiling Height

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   DMNS, CEILING2, DeflinesCeiling

Alias:                                       DW

Associated Commands:          [Show System Model] [Check Elevation] [Ceiling Height]

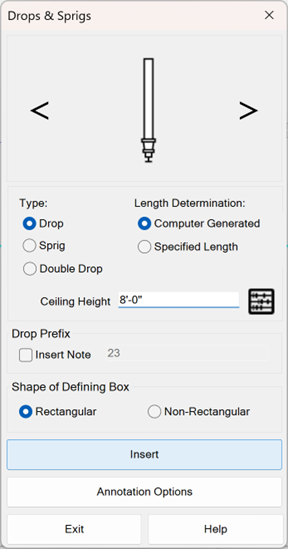

Used to set up drops, sprigs, double drops and/or the ceiling height. Starting the command will open the Drops & Springs dialog box.

A screenshot of a cell phone Description automatically generated

Select the Type with the radio buttons or toggle through the images in the graphic.

Select the Length Determination with the radio buttons. Computer Generated will set the sprinkler elevations at the specified Ceiling Height and calculate the appropriate drop/sprig length to achieve this.

Specified Length will allow you to manually enter the length of the drop or sprig. Enter with the keyboard or select from the abacus.

Use the Shape of Defining Box options to choose how you will specify the Drop or Sprig area. Rectangular will require two picks. Use Non-Rectangular to define an area with multiple picks.

Use Insert Note to insert the text in the available field.

Press Insert to define the area.

A close up of a map Description automatically generated

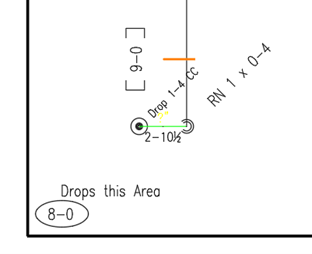

Here is an example with drop pendents. The Ceiling Elevation is at 8’-0”.

The drop was automatically calculated as 1’-4” with a 9’-0” branch and a 4” riser.

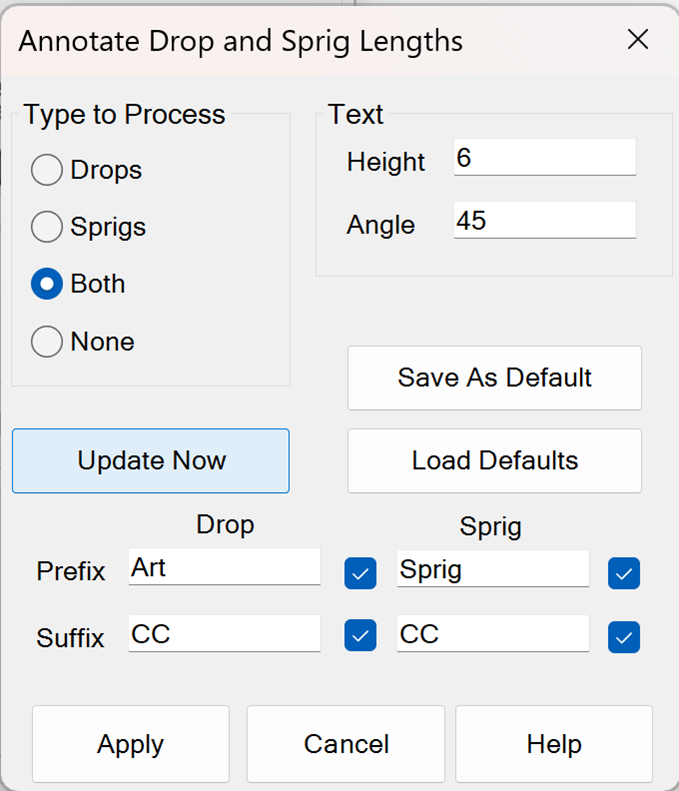

Annotation Options opens a dialog box where you can edit the drop or sprig label appearance.

A screenshot of a cell phone Description automatically generated

Adjust the settings and Update Now to execute the changes. If you have a preferred setup, use Save As Default to create a backup. Use Load Defaults to retrieve the current Default.

To get a Double Drop where the branch line drop is a fixed distance and the sprinkler drop is automatic, insert fixed length drop pipes at the branch lines with the Riser Nipple Setup command. Then, insert a Computer-Generated Drop window where the ceiling height is specified.

A screenshot of a cell phone Description automatically generated

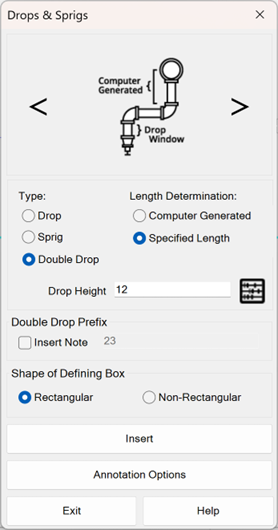

To get a Double Drop where the sprinkler drop is fixed and the branch line drop length is automatic, you must use the Double Drop option.

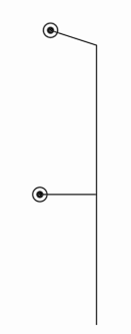

Follow these instructions. Start by positioning your sprinklers and attach branch lines to them. There should be a pipe elevation tag in your system that defines the elevation of the branch line.

A close up of a lamp Description automatically generated

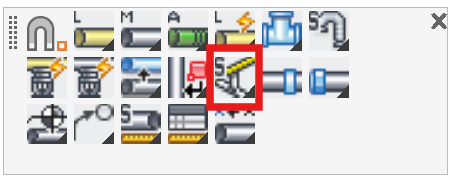

Start the Riser Nipple Setup command.

A screenshot of a cell phone Description automatically generated

A screenshot of a cell phone Description automatically generated

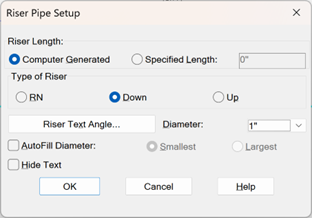

Set up your vertical pipes to be Down from the branch lines and the length to be Computer Generated.

A picture containing object Description automatically generated

Start the Define Drops/Sprigs or Ceiling Height command.

A screenshot of a cell phone Description automatically generated

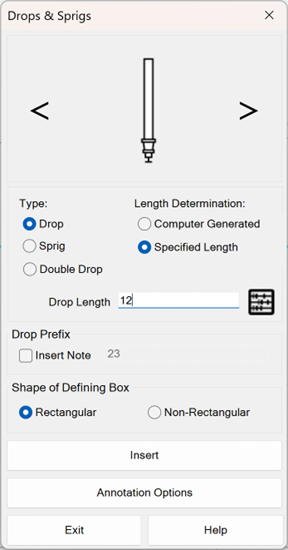

Set it up for a Specified Length Drop. This will set the drop length at the sprinklers.

Press Insert and place a window around the drop pipes and branch lines. Start the Define Drops/Sprigs or Ceiling Height command again.

A screenshot of a cell phone Description automatically generated

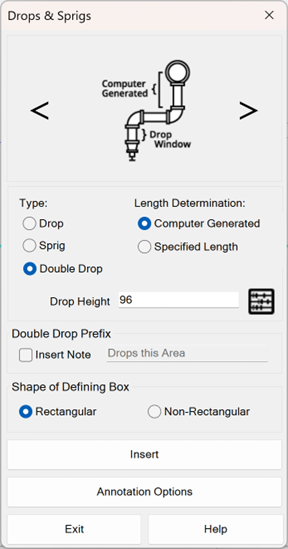

Set up the dialog box for a Computer-Generated Double Drop. The Drop Height will be the ceiling elevation or the elevation of the sprinklers.

Press Insert and pick the diagonal corners of the existing drop window. You will then be asked to pick the corners of the existing drop window again. Do this.

The Drops & Sprigs dialog box will return.

A screenshot of a cell phone Description automatically generated

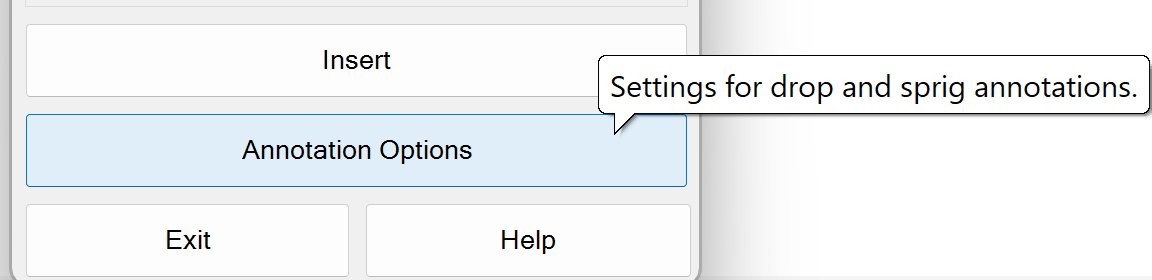

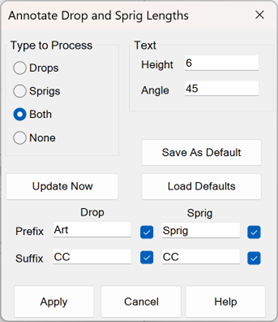

Select Annotation Options.

A screenshot of a cell phone Description automatically generated

Select Update Now

A close up of a clock Description automatically generated

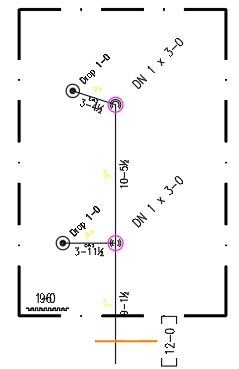

The branch drop pipes will now show the correct length to achieve the specified sprinkler height.

Small characters will appear on the armovers that specify their elevations. Do not erase them.
