Underground

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   SPRKDAT3

Alias:                                       UG

Associated Commands:         [Line] [Main] [Armover]

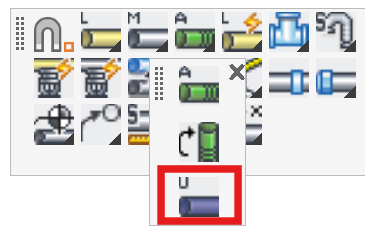

HydraCAD Ribbon:                 Draw Panel

Used to draw underground piping. Places a line on the SPRKDAT3 layer. Draw the underground from a picked point to a picked point.

AutoCalc will carry the size and pipe type over to HydraCALC and assign an Input Type of UG. Underground pipe is not transferred by AutoList to HydraLIST.
