Double Ell

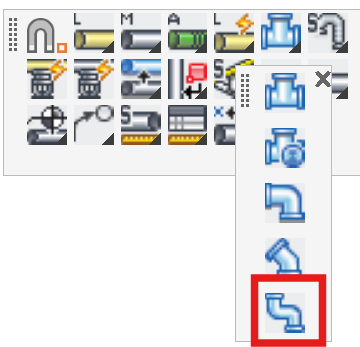

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   SPRKDAT1, SPRKDAT2, SPRKDATA

Alias:                                       ZEE

Associated Commands:         [Main] [Line] [45 Ell] [90 Ell] [Size Pipe Setup]

HydraCAD Ribbon:                 Draw Panel

Used to insert double elbows between pipes or sprinklers and pipes. Pick the 1st Head as the first point. Pick the 2nd Head as the second point.

Pick the point where the first elbow is to begin or point and enter a distance at the keyboard.

The first elbow will be drawn at exactly the point chosen and the rest of the piping will be drawn to connect to the second point.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Double Ell: [Click Here]
