Tee w/Riser Nipple

Layer(s) affected:                   SPRKDAT1, SPRKDAT2, SPRKDATA

Alias:                                       TER

Associated Commands:         [Main] [Line] [Size Pipe Setup]

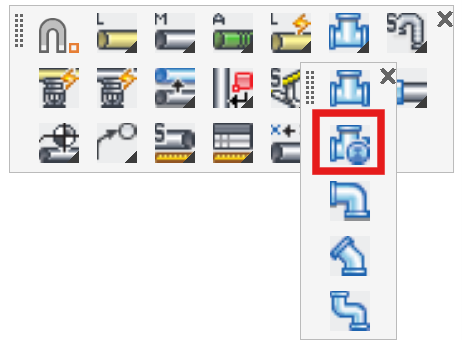

HydraCAD Ribbon:                 Draw Panel

Similar to the Tee command except a riser nipple is inserted at the connection. If you have not previously inserted a riser nipple during this drawing session, the Riser Pipe Setup dialog box will appear. Otherwise the most recent riser nipple setting will be used.

Set up your riser nipple with this box and press OK.

*Tip* - Many users prefer that such riser nipples use the Hide Text option to avoid cluttering the drawing.

For more information on this see the Riser Nipple Setup command.

The pipe will be broken at the tee intersection and the riser nipple inserted.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Tee w/Riser Nipple: [Click Here]
