Pipe Break

Layer(s) affected:                   SPRNK2

Alias:                                       QB

Associated Commands:         [Pretty Pipes] [Manual Pipe Break]

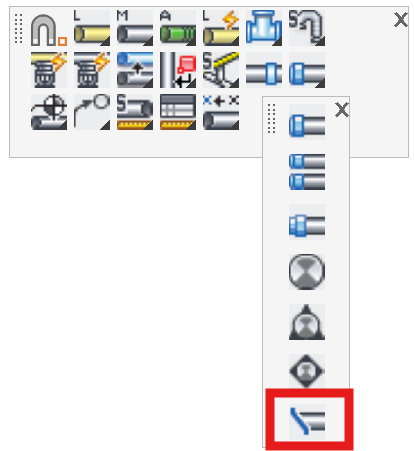

Used to insert a pipe break symbol at a picked point on a pipe. The pipe break symbol is for illustration only and will not be picked up by the listing or hydraulics program.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Pipe Break: [Click Here]
