Standard Sidewall Guide

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   SPRNKS

Alias:                                       SWG

Associated Commands:         [Select Sprinkler] [Insert Sprinkler]

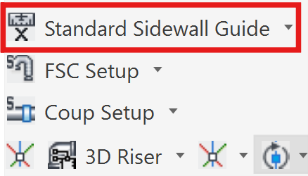

HydraCAD Ribbon:                 Insert Panel

Used to insert sprinklers, one at a time, with a spacing “halo”. When you start the command, you will be prompted to input the spray direction at the command line. This will orient the halo.

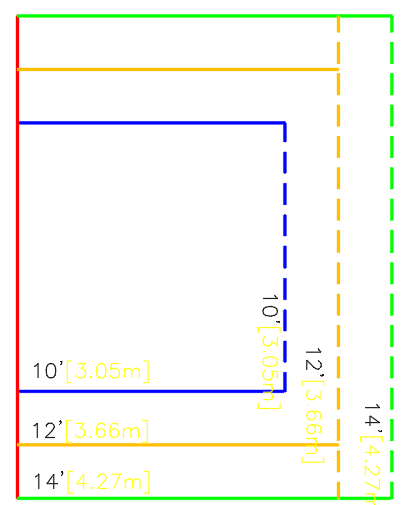

Press enter and the spacing halos appear as shown in the figure. The spacing dimensions are shown on the halos. Use the halos for checking sprinkler spacing.

A pick with the mouse will insert a sprinkler at the center of the cross hairs. The inserted sprinkler will be the last sprinkler specified by the Select Sprinkler or Pick Current Head command. The command continues until the ESC key is pressed.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Standard Sidewall Guide: [Click Here]
