Rapid Main w/size

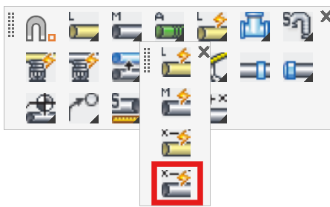

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   SPRKDAT1, SPRKDATA

Alias:                                       None

Associated Commands:         [Rapid Main] [Rapid Line]

HydraCAD Ribbon:                 Draw Panel

Used to insert main piping by the same methods as with the Rapid Main command. The command will also insert pipe sizes and lengths. The diameter will be inserted according to the setting in the Size Pipe Setup command. If no size is selected from Size Pipe Setup, HydraCAD will insert a question mark as the pipe diameter. See the Rapid Line command for a detailed explanation.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Rapid Main w/ Size: [Click Here]
