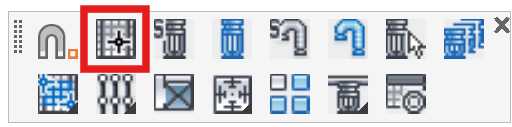

Align Crosshairs with Ceiling

Layer(s) affected:                   None

Alias:                                       None

Associated Commands:         [Insert Sprinkler] [Insert Multiple Sprinklers]

This transparent command is used to set the Snap origin point at an intersection of the ceiling grid lines. The default Snap spacing is 12 inches (300mm).

*Tip* - This makes it easy to align the crosshairs with the center of a tile or a quarter point so that heads may be placed quickly using the Insert Sprinkler command.

Once the Base Point has been set, SNAP is turned on and will remain configured until the command is used again. You can now insert sprinklers or lights. Press F9 or pick the SNAP button to turn SNAP off.

*Tip* - To adjust the distance the crosshairs move, type in SNAP and then enter the distance desired.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Align Crosshairs with Ceiling: [Click Here]
