Piping Osnaps

Layer(s) affected:                   None

Alias:                                       None

Associated Commands:         [Line] [Main] [Line w/ Size] [Main w/ Size]

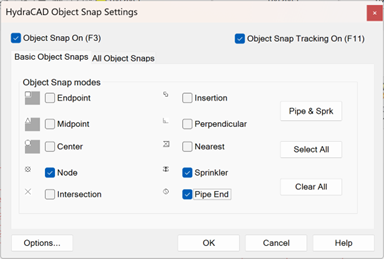

Used to set default object snaps to use with many of the piping commands. When started, the HydraCAD Object Snap Settings dialog box will open.

Selections include the most common AutoCAD Osnaps as well as the custom HydraCAD Osnaps, Sprinkler and Pipe End. The All Object Snaps tab provides a more complete list of both AutoCAD and HydraCAD Osnaps.

The Sprinkler and Pipe End object snaps make it easy to select just the sprinkler piping and sprinkler heads, while excluding objects that might get in the way. Press Pipe & Sprk for the default settings. Select All will check all boxes. Clear All will uncheck all boxes.

Check Object Snap On to turn the running Osnaps on. Check Object Snap Tracking On to turn on Otrack.

Press Options to open the AutoCAD Options dialog box.

*Tip* - To override these object snaps and use you own exclusively, select the ‘Use your own Object Snaps’ command from the HydraTools->Option drop down menu

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Piping Osnaps: [Click Here]
