Hydraulic Demand

Layer(s): HYD2

Shortcut: IHD

Associated: Start AutoCalcs

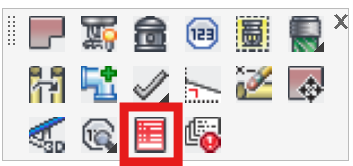

Ribbon: Process Panel

Insert a Hydraulic Calculation Information block containing data from a completed calculation.

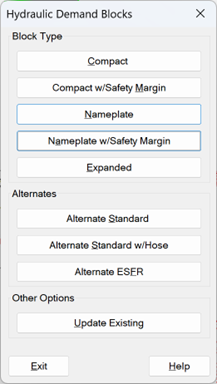

The choices of Block Type include Compact, Nameplate and Expanded. Two of these have a Safety Margin option.

The two Alternates, Standard and ESFR, use a different format than the first four.

Use Update Existing if you have changed the calculation or Job Information and want to refresh an existing block with new data.

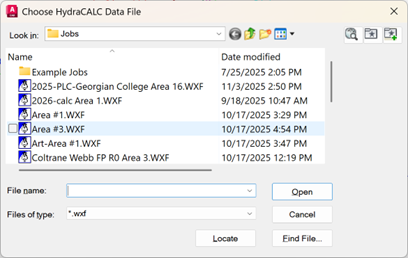

Choose your option and then select your Job file and press Open.

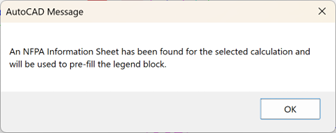

You must have performed a HydraCALC calculation on the selected job. If you have filled in the Information Sheet, data from the info sheet will be carried over to the new block.

Otherwise, certain information will be left for you to fill in if you have not completed an Information Sheet.

You will be asked to pick the Base of Riser Node so that the flow and pressure at that point can be brought to the information block.

The block will be inserted at the point you pick and is immediately brought into edit mode so that you can make whatever changes are necessary.

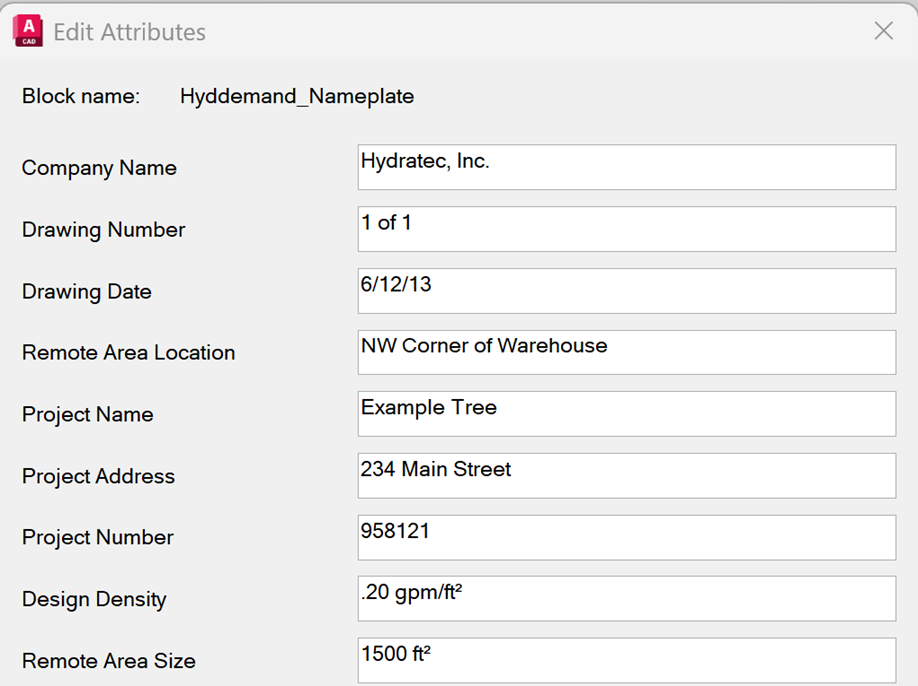

Part of the Nameplate block is shown here. Make any changes you want an pick OK to close it.
