Reducer

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   HVAC

Alias:                                       None

Associated Commands:         [Duct Width] [Rigid Turn] [Flex Turn] [Rigid Section] [Flex Section]

Used to insert a duct reducer. Press Enter to use the end of the last duct inserted or pick the centerline of the end of the duct where the reducer will be applied.

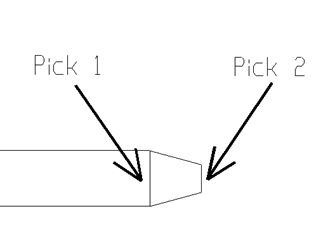

Pick the end point or drag and enter a distance as you did before. Select a size to reduce to and press OK. The reducer will be inserted.

A screenshot of a cell phone Description automatically generated
