Main ​
Layer(s) affected:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â SPRKDAT1
Alias:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â MN
Associated Commands:Â Â Â Â Â Â Â Â Â [Auto Main] [Tee] [90 Ell] [45 Ell] [Double Ell] [Size Pipe Setup] [Pretty Pipes]

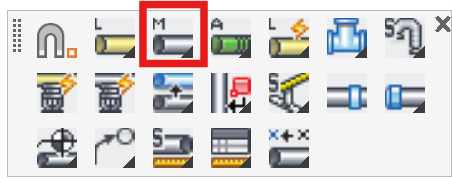

HydraCAD Ribbon: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Draw Panel
Used to draw main piping. Places a line in the SPRKDAT1 layer. Draw the main from a picked point to a picked point.
HydraCARDs (Troubleshooting) ​
For HydraCARDs regarding Main: [Click Here]
