Insert 30x42 Title Block

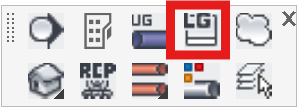

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   BORDER

Alias:                                       None

Associated Commands:         [Insert 24x36 Title]

To be used with the legacy HydraCAD Imperial template where the title block is in Model space. The command will insert a title block into a drawing with a sheet size of 30”X42”.

When you start the command, the Edit Attributes dialog box will appear. Enter the information in the blank spaces.

When finished, press OK and the title block will be inserted.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Insert 30x42 Title Block: [Click Here]
