Standard Guide

Layer(s): SPRNKS

Shortcut: SG

Associated: Select Sprinkler / Insert Sprinkler

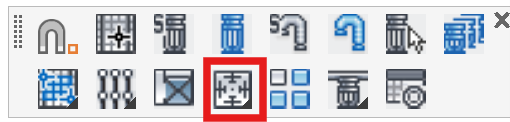

Ribbon: Insert Panel

Insert sprinklers, one at a time, with a spacing guide. Start the command and you will be prompted to pick intersection of grid lines. Do this if you have a reflected ceiling plan, otherwise, right click to proceed.

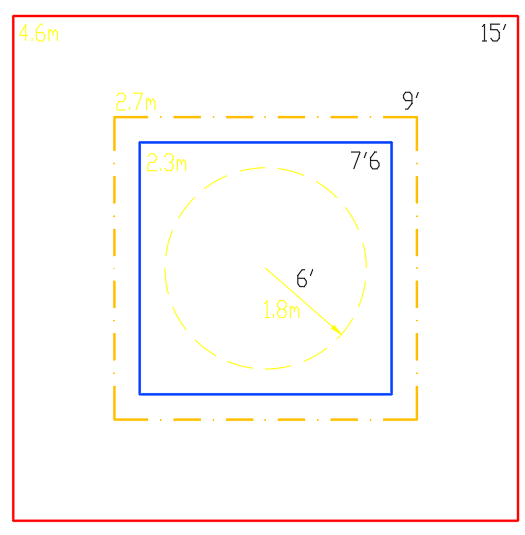

The spacing guides appear as shown in the figure. The spacing halos are 15’, 9’, and 7’6” square boxes and a 6’ diameter circled centered about the cross hairs (for checking minimum spacing). Metric dimensions are included on the left side of the boxes. Use the guide for checking sprinkler spacing.

A pick with the mouse will insert a sprinkler at the center of the cross hairs. The inserted sprinkler will be the last sprinkler specified by the Select Sprinkler or Pick Current Head command.

The command continues until the ESC key is pressed.
