Riser Symbol 1, 2, 3

Layer(s) affected:                   SPRNK2

Alias:                                       None

Associated Commands:         [Riser Symbol1] [Riser Symbol2] [Riser Symbol3]

HydraCAD Ribbon:                 Insert Panel

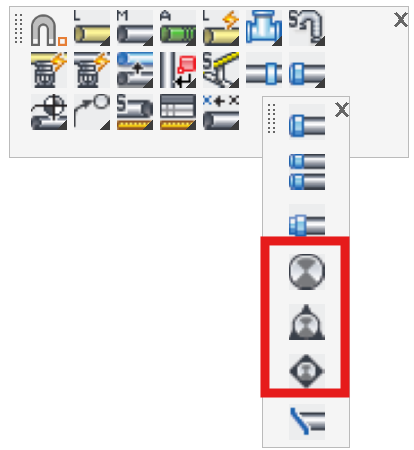

Used to insert a riser symbol at a picked point. There are three symbols to choose from.

*Tip* - These are only for illustration purposes. You will still need to insert a Riser Nipple in order to have pipe that can be calculated and listed.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Riser Symbol 1: [Click Here]

For HydraCARDs regarding Riser Symbol 2: [Click Here]

For HydraCARDs regarding Riser Symbol 3: [Click Here]
