Sprinkler Osnaps

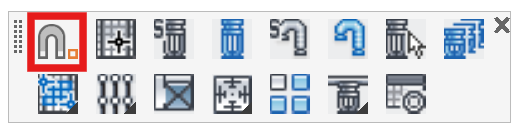

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   Varies

Alias:                                       None

Associated Commands:         [Insert Sprinkler] [Insert Multiple Sprinklers]

Opens the Drafting Settings dialog box where you can select your favorite Osnap settings to use with sprinkler insertion commands.

*Tip* _- To override these object snaps and use you own exclusively, select the ‘Use your own Object Snaps’ command from the HydraTools > Option drop down menu

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Sprinkler Osnaps: [Click Here]
