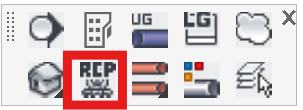

Generate RCP Heads

Layer(s) affected:                   SPRNKS, RCP_HEADS

Alias:                                       None

Associated Commands:         None

Duplicates sprinklers on a drawing and places them on the RCP_HEADS layer. Intended as a method to copy sprinkler heads for plotting a reflected ceiling plan.

Start the command and you will be prompted to Select Heads to be ‘shadowed’ or Right-Click to filter for a particular Head...

If you only have one kind of sprinkler on the drawing, no need to right click. Just select the sprinklers with a window and they will be duplicated.

If you have more than one kind of sprinkler, Right-Click and pick a sprinkler that represents the type you want to duplicate. Next, pick all of your sprinklers with a window and Right-Click. Only the filtered sprinklers will be duplicated. Turn off the SPRNKS layer and move the RCP_HEADS sprinklers as desired.
