Cut Lines into Pieces

Layer(s) affected:                   SPRNK2, SPRKDAT1, SPRKDAT2, SPRKDATA

Alias:                                       SLICE_N_DICE

Associated Commands:         [Line]

Used to break branch lines up into regular sized pieces. This command is most used when piping must fit in freight elevators at the job site. It will insert  breaks and couplings on  branch lines at the  specified distance.

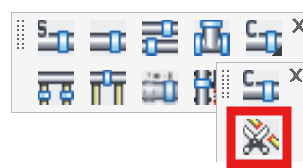

Starting the command will open the dialog box. Select a Standard Length or specify a Maximum Length.

Enter a Tolerance to limit those pipes that will receive couplings. In this example, only those pipes that are 7’-6” or longer will receive couplings.

Press OK and select the lines.

Couplings are applied to the two upper pipes because they exceed 7’-6”.

The lower pipe did not receive a coupling since it is less than 7’-6”.
