Export Pipe Dimensions to Revit

This tool is to add pipe sizes and dimensions to your Revit projects. Have HydraCAD and Revit open with your project. The HydraCAD drawing should be in the 2D view.

A picture containing screenshot Description automatically generated

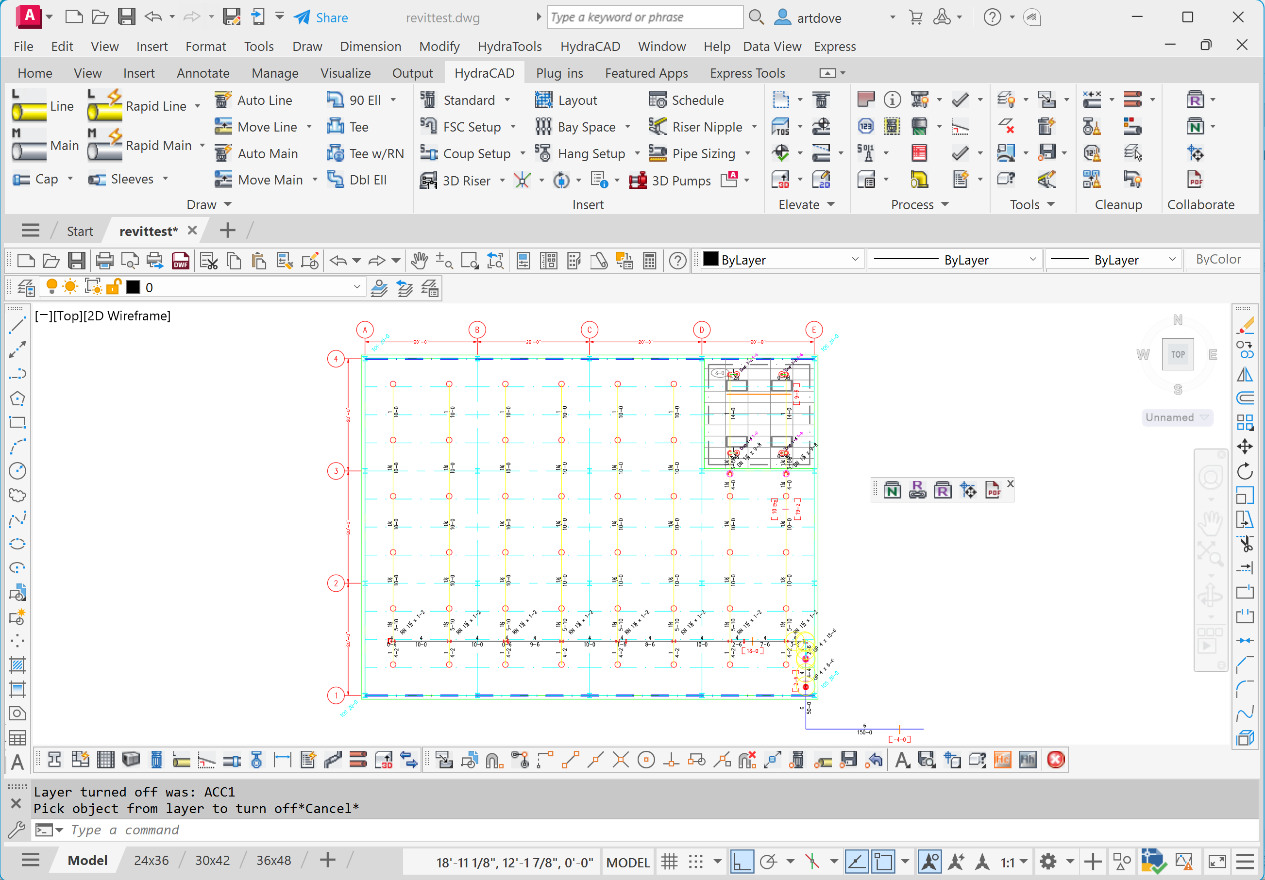

Show pipe sizes and center to center dimensions on your drawing.

A picture containing object, screenshot Description automatically generated

Open the Collaborate toolbar and pick Revit Toolkit.

A screenshot of a cell phone Description automatically generated

Pick Export Pipe Dimensions to Revit. This will create a drawing file in the project folder having the drawing’s name with –Annotations appended to the end.

A screenshot of a cell phone Description automatically generated

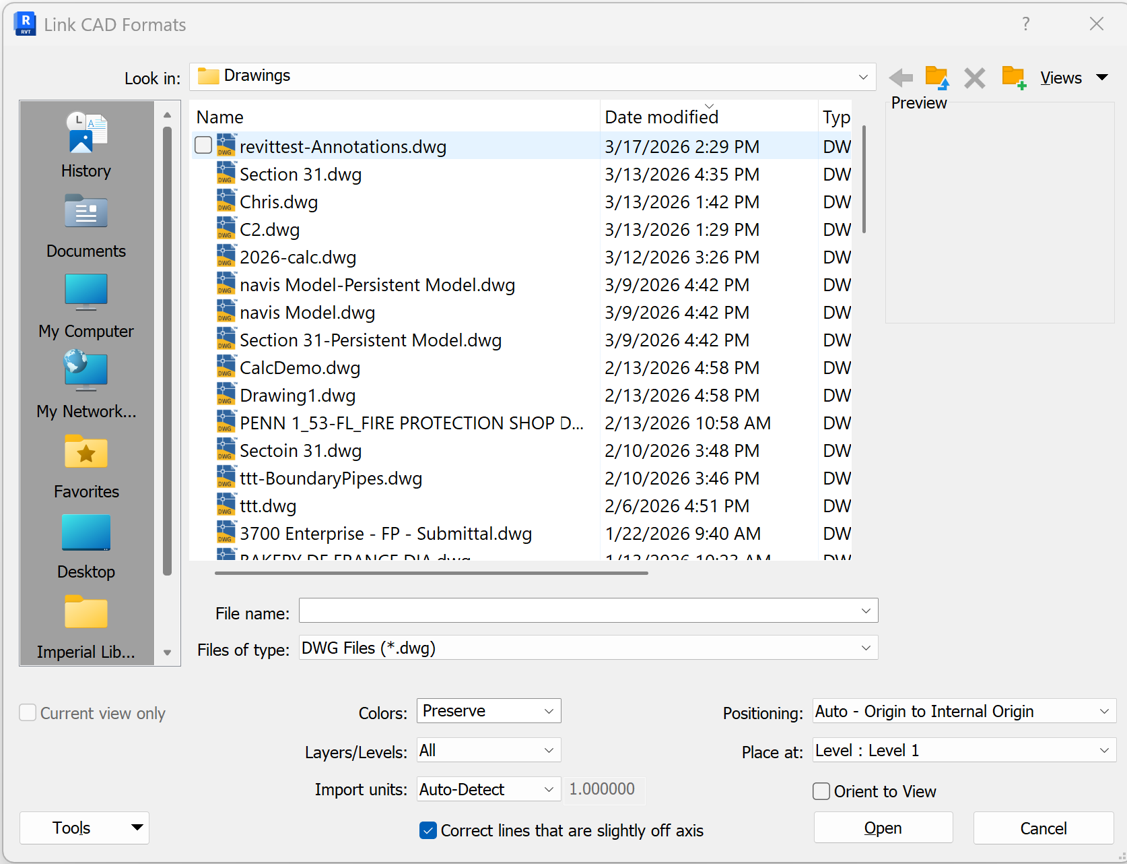

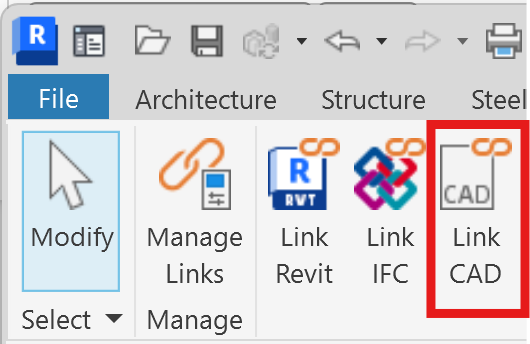

Open Revit with the corresponding project. From the Insert tab, pick Link CAD. The Link CAD Formats dialog box will appear.

A screenshot of a cell phone Description automatically generated

Select the appropriate dwg file. Positioning: should be set to Auto – Origin to Origin.   Place at: should be set to the corresponding level for your annotation file.

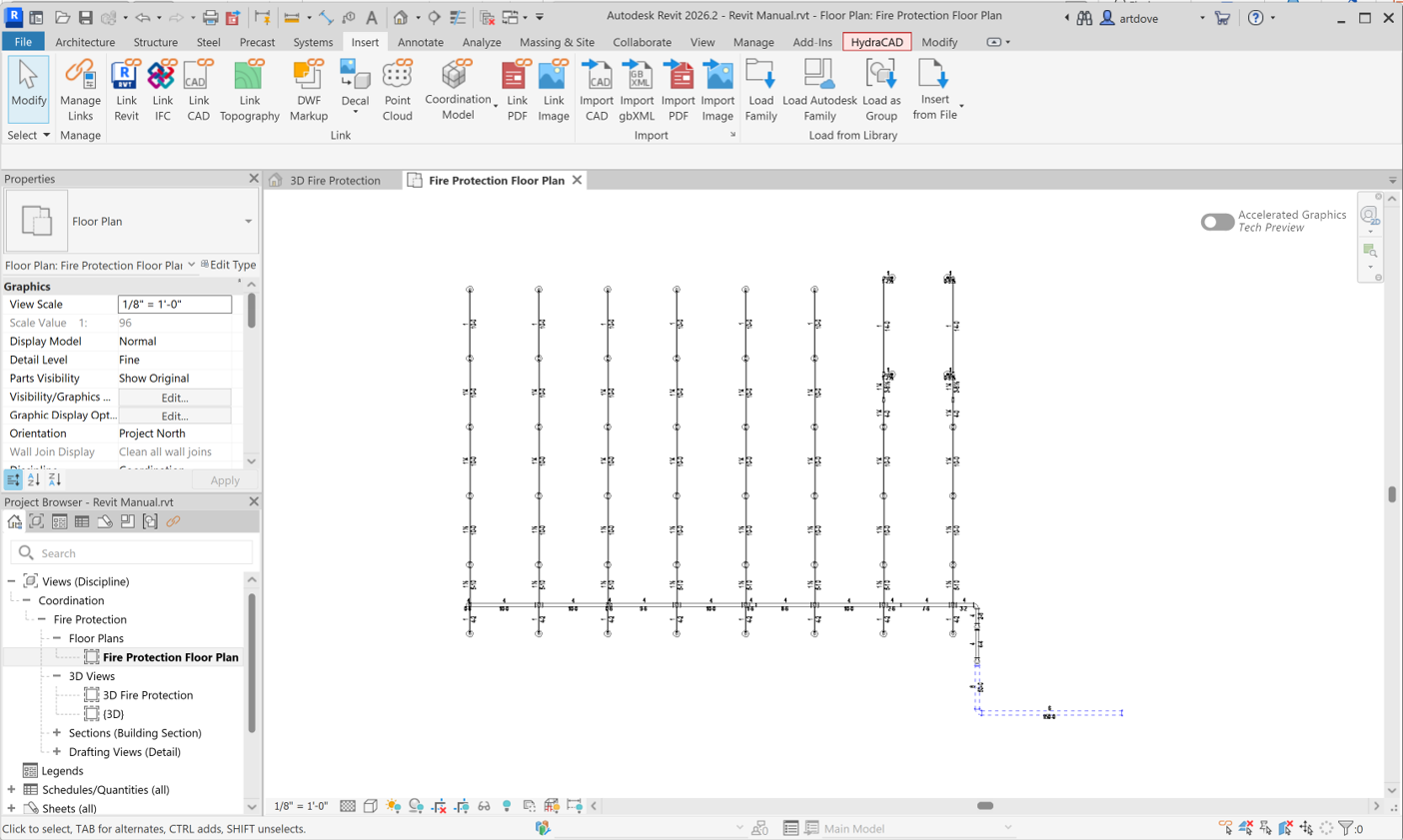

The pipe annotation cad file will be linked to the project.

A screenshot of a social media post Description automatically generated

If changes are made to your project in HydraCAD, repeat Export Pipe Dimensions to Revit to make an updated annotation dwg file.

A screenshot of a cell phone Description automatically generated

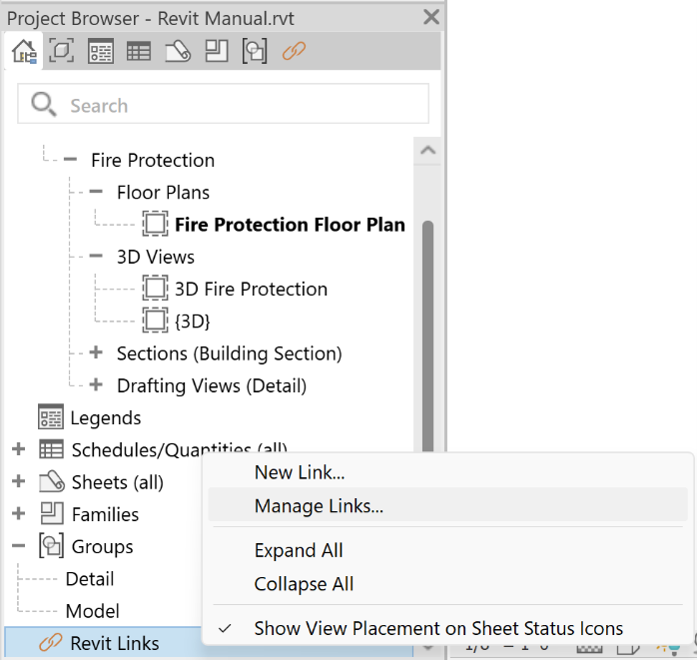

Open Revit to the corresponding project. In the Project Browser, at the bottom of the list, right click on Revit Links and pick Manage Links. The Manage Links dialog will appear.

A screenshot of a cell phone Description automatically generated

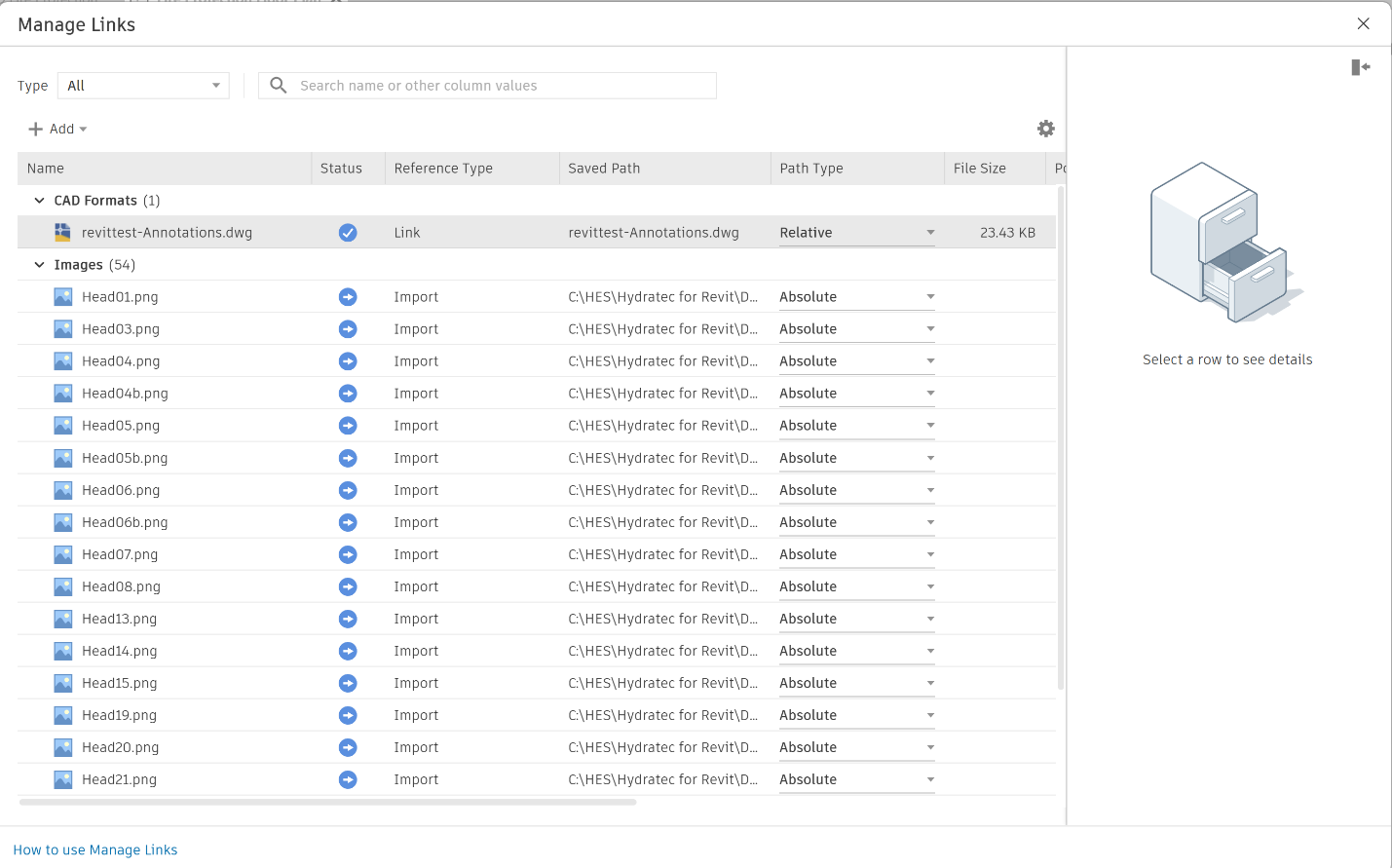

Pick the CAD Formats tab. Select the appropriate dwg file and pick the Reload button. This will update your project.
