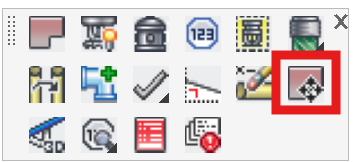

Move Remote Area

Layer(s): REMOTE_AREA

Shortcut: MRA

Associated: Remote Area

Move a remote area polyline and the operating blocks within it after a grid calculation. If you find that the remote area should be moved, especially after a grid auto peak calculation, this tool makes the move easy. Start the command and you will be prompted to Please pick polyline surrounding area to be moved. Pick the remote area boundary.

Next, pick a sprinkler within the existing remote area as a reference for the base point.

Next, pick a sprinkler where the remote area should be moved to (such as one or two heads to either side).

The boundary, flowing sprinkler tags, and other hydraulic blocks will all be moved together.
