Move one Size

Layer(s) affected:                   SPRKDATA, SPRKDATB

Alias:                                       MVA

Associated Commands:         [Auto Clean up Sizes] [Move Many Sizes Together] [Move Special]

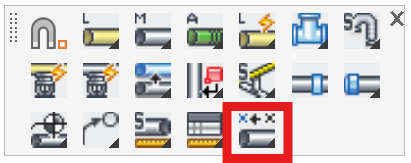

HydraCAD Ribbon:                 Cleanup Panel

Used to manually move pipe and hanger dimension tags to improve drawing clarity. Note that YOU CANNOT USE THE AUTOCAD MOVE COMMAND to move pipe dimension tags. The tags must retain their association with the pipes for Stocklisting and Hydraulics. Using the AutoCAD Move command loses this connection.

Select the Move one Size command, pick the dimension to move, and then pick the point to be moved to. The command will continue until you press the Esc key.

*Tip* - You can also select the pipe dimension and use AutoCAD GRIPS to move dimension tags, just don’t move the grip at the midpoint of the pipe.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Move one Size: [Click Here]
