Line

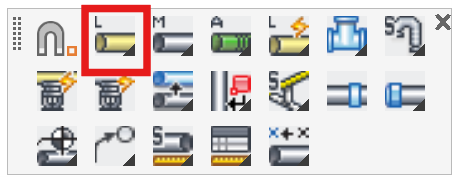

A screenshot of a social media post Description automatically generated

Layer(s) affected:                   SPRKDAT2

Alias:                                       LN

Associated Commands:         [Tee] [Line w/ Size] [Existing Line] [Auto Line] [90 Ell] [45 Ell] [Double Ell] [Pretty Pipes]

HydraCAD Ribbon:                 Draw Panel

Used to draw branch line piping. Places a line in the SPRKDAT2 layer. Draw the line from a picked point to a picked point. The example below shows a line inserted between two sprinklers. Pick one sprinkler, and then the next after selecting Line.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Line: [Click Here]
