Room Tags

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   WALL3

Alias:                                       RT

Associated Commands:         None

Used to insert labels or tags in various rooms of the building.

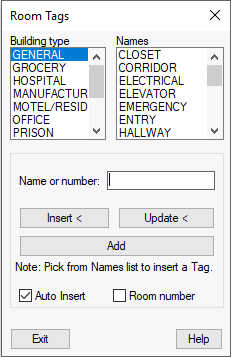

Start the command and the Room Tags dialog box will appear. By picking the building type, a list of available names appears in the names list.

A screenshot of a social media post Description automatically generated

Pick the name and then pick a point in the room for insertion. You may also enter your own name in the Name or number area of the box.

Room numbers may also be inserted. Check the Room number option and then type in the number.

Insertions will continue until you press Enter. Numbers will increase by 1 for every insertion.

The Auto Insert option provides automatic placement of room tags when one is picked from the list.

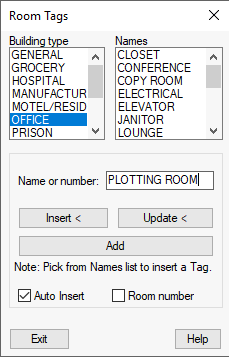

To add a new Name to the list, pick the Building type, and then type in the new name. The example shows the name PLOTTING ROOM being added to the OFFICE type.

A screenshot of a cell phone Description automatically generated

Press the ADD button to update the list. To add a new Building type, type in the new name with square brackets, and then press the Add button.

The list containing these names is in the HCADROOM.DAT file. You may edit this file through Explorer to remove any unwanted names.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Room Tags: [Click Here]
