Insert One RN

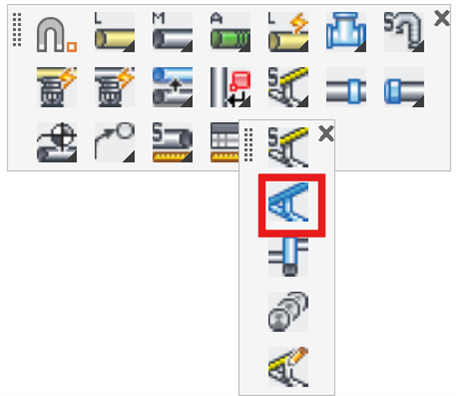

A screenshot of a cell phone Description automatically generated

Layer(s) affected:                   SPRNK2, SPRKDATA

Alias:                                       IR

Associated Commands:         [Riser Nipple Setup] [Multiple RNs] [Edit Riser Nipples]

[Tee w/ Riser Nipple]

HydraCAD Ribbon:                 Insert Panel

Used to insert a single riser nipple or riser pipe at a picked point. The properties of the riser will be according to the last Riser Nipple Setup command settings.

HydraCARDs (Troubleshooting)

For HydraCARDs regarding Insert One RN: [Click Here]
