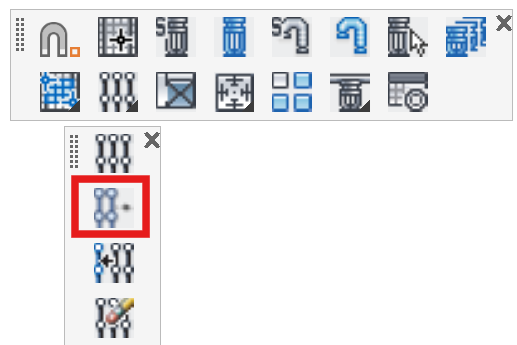

Move Bay

Layer(s): SPRNKS, SPRKDAT2

Shortcut: MBAY

Associated: Select Sprinkler / Insert Sprinkler / Lines

Ribbon: Insert Panel

Used to move existing bay layouts. Start the command and you will be prompted to Select objects. Select the sprinklers and pipes you would like to move and right click. You will be prompted for a base point or Displacement. Choosing Displacement will allow you to enter a three-axis coordinate for the move.
