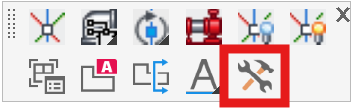

3D Fitting Tools

Layer(s): NONE

Associated: Insert Fitting

Fixes or denotes missing 3D Fittings.

Occasionally a drawing may become corrupted or damaged. Or, all-new fittings were created on a different machine and the detail opened on another machine, which does not have those custom fittings. This manifests itself in a detail that appears to be missing some fittings.

In these cases, the 3D Fitting Tools can fix many of the missing fittings and can give a report of which ones could not be found. This list can help you determine which ones should be copied off the original computer. Use this dialog to Check for missing 3D Fittings first, and then Repair those Missing Fittings if necessary.
